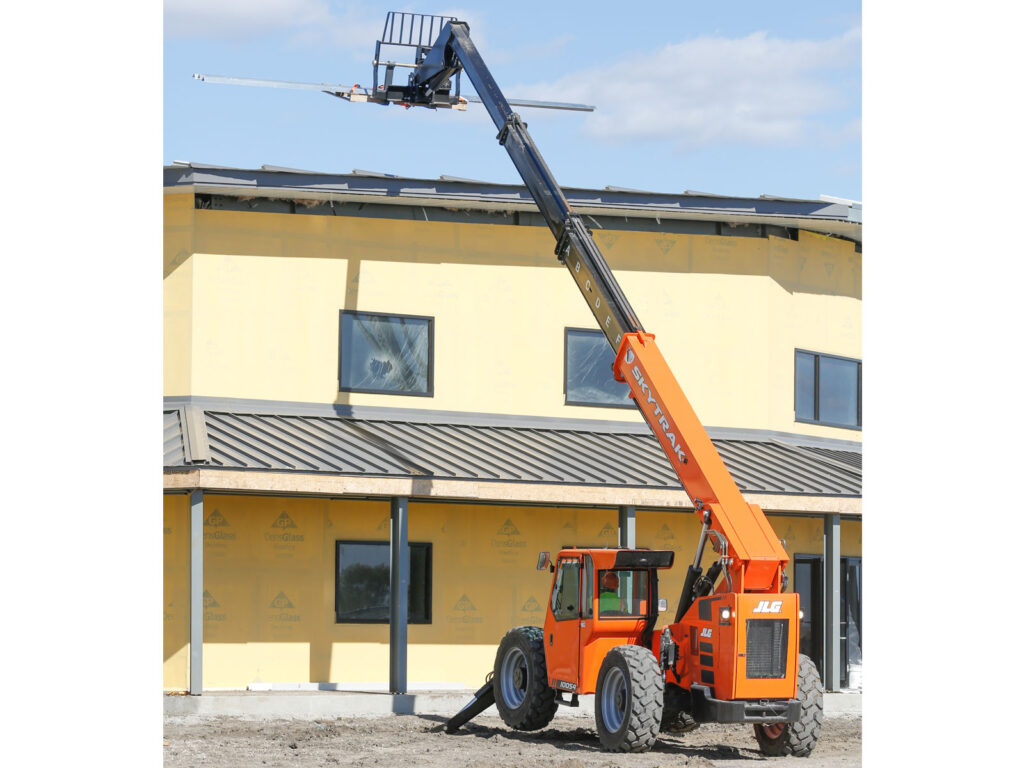

JLG 10054
Telehandlers
Key Specs
- Maximum Lift Capacity: 10000 lb / 4535.92 kg
- Outriggers Up Max Lift Height: 53 ft 2 in. / 16.21 m
- Maximum Lift Height: 53 ft 2 in. / 16.21 m
- Maximum Reach: 38 ft 9 in. / 11.81 m
Key Features
- Single joystick and integrated arm rest for reduced operator fatigue
- Optional air conditioning for enhanced operator comfort
- Stabil-Trak rear axle stabilization system for increased operator confidence when placing a load
- Optional 74 hp engine doesn’t require Diesel Exhaust Fluid (DEF) and meets Tier 4 Final regulations
| Axle-Front | High Bias, Limited Slip |
|---|---|
| Axle-Rear | Oscillating |
| Capacity - Fuel Tank | 35 gal. / 132.49 L |
| Drawbar Pull | 24500 lb / 11113.01 kg |
| Engine Horsepower | 110 hp / 82.06 kW |
| Engine Manufacturer | Cummins |
| Engine Model | QSF3.8L Tier 4 Final |
| Frame Leveling | 10 Degrees |
| Function Pump Type | Var Load Sensing Piston |
| Ground Clearance | 1 ft 6 in. / 0.46 m |
| Lift Capacity at Full Height | 4000 lb / 1814.37 kg |
| Lift Capacity at Max Reach | 1400 lb / 635.03 kg |
| Load Center | 2 ft / 0.61 m |
| Machine Height | 8 ft 4 in. / 2.54 m |
| Machine Length | 21 ft / 6.4 m |
| Machine Width | 8 ft 6 in. / 2.59 m |
| Maximum Engine RPM | 1500 rpm |
| Maximum Lift Capacity | 10000 lb / 4535.92 kg |
| Maximum Lift Height | 53 ft 2 in. / 16.21 m |
| Operating Vehicle Weight | 28200 lb / 12791.30 kg |
| Outriggers or Stabilizers | No |
| Outriggers Up Lift Capacity Full Reach | 3000 lb / 1360.78 kg |
| Outriggers Up Max Forward Reach | 38 ft 9 in. / 11.81 m |
| Outside Turning Radius | 13 ft 9 in. / 4.19 m |
| Service Brake Type | Wet Multi-Disc |
| Speed - Maximum Lift | 16.4 sec. |
| Speed - Maximum Lower | 14.7 sec. |
| Speed - Maximum Telescope In | 15.9 sec. |
| Speed - Maximum Telescope Out | 17.6 sec. |
| Speed - Maximum Travel | 20 mph / 32.19 km/h |
| Tire Size | 400/75-28 |
| Transmission - Nr Forward Gears Standard | 4 |
| Transmission - Nr Reverse Gears | 3 |
| Transmission Type | Powershift |
| Wheelbase | 10 ft / 3.04 m |
- Optional 74 hp engine doesn’t require Diesel Exhaust Fluid (DEF) and meets Tier 4 Final regulations
- Optional air conditioning for enhanced operator comfort
- Single joystick and integrated arm rest for reduced operator fatigue
- Stabil-Trak rear axle stabilization system for increased operator confidence when placing a load
