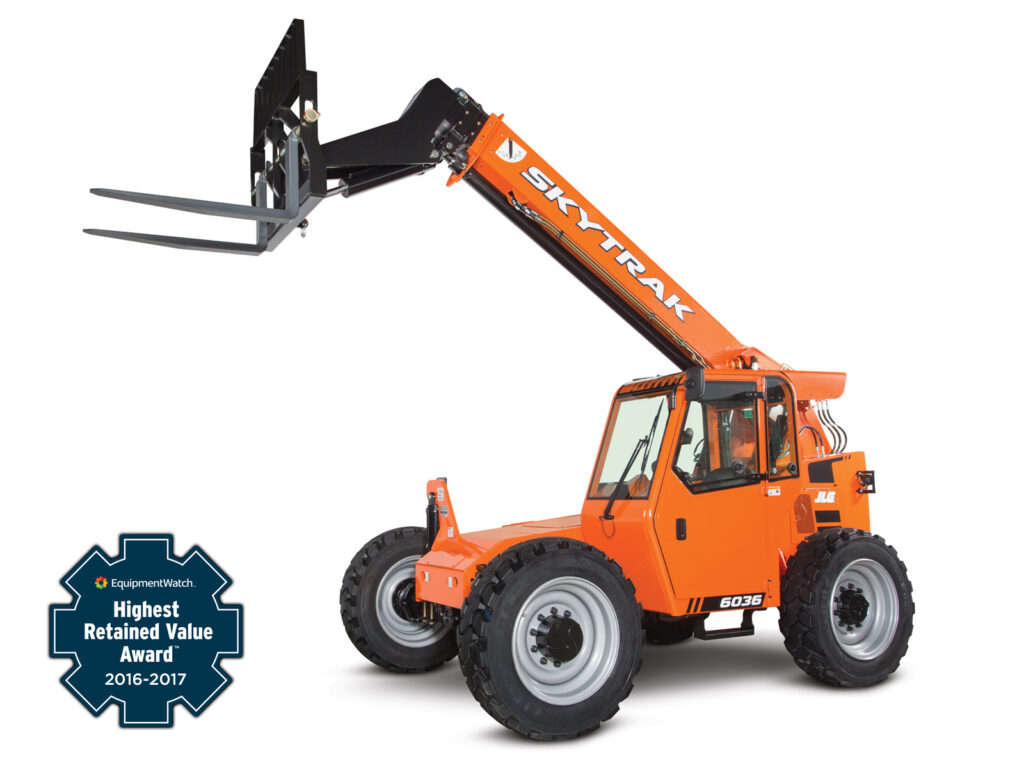

JLG 6036
Telehandlers
Equipment Features
- 74 hp engine doesn’t require Diesel Exhaust Fluid (DEF) and meets Tier 4 Final regulations
- Greater job site versatility—rear counterweight includes an integrated tow hitch
- Increased operator confidence with Stabil-Trak rear axle stabilization system when placing a load
| Axle-Front | High Bias, Limited Slip |
|---|---|
| Axle-Rear | Oscillating |
| Capacity - Fuel Tank | 35 gal. / 132.49 L |
| Drawbar Pull | 22000 lb / 9979.03 kg |
| Engine Horsepower Optional | 85 hp / 63.41 kW |
| Engine Horsepower | 74 hp / 55.20 kW |
| Engine Manufacturer | Cummins |
| Engine Model Optional | QSF3.8L Tier 4 Final |
| Frame Leveling | 10 Degrees |
| Function Pump Type | Gear |
| Ground Clearance | 1 ft 3 in. / 0.38 m |
| Lift Capacity at Full Height | 6000 lb / 2721.55 kg |
| Lift Capacity at Max Reach | 1800 lb / 816.47 kg |
| Load Center | 2 ft / 0.61 m |
| Machine Height | 8 ft 4 in. / 2.54 m |
| Machine Length | 18 ft 8 in. / 5.69 m |
| Machine Width | 8 ft 3 in. / 2.51 m |
| Maximum Engine RPM | 1400 rpm |
| Maximum Lift Height | 36 ft 1 in. / 11 m |
| Maximum Reach | 22 ft 4 in. / 6.81 m |
| Operating Vehicle Weight | 21300 lb / 9661.52 kg |
| Outriggers or Stabilizers | No |
| Outside Turning Radius | 13 ft 9 in. / 4.19 m |
| Speed - Maximum Lift | 11.5 sec. |
| Speed - Maximum Lower | 9 sec. |
| Speed - Maximum Telescope In | 14 sec. |
| Speed - Maximum Telescope Out | 13.5 sec. |
| Speed - Maximum Travel | 19 mph / 30.58 km/h |
| Tire Size | 370/75-28 |
| Transmission - Nr Forward Gears Standard | 4 |
| Transmission - Nr Reverse Gears | 3 |
| Transmission Type | Powershift |
| Wheelbase | 9 ft 5 in. / 2.87 m |
- Maximize productivity with improved boom speeds
- New, intuitive single joystick controls all boom functions
- Redesigned cab includes new dashboard, integrated arm rest and optional air conditioning
| Equipment Document | View Link |
|---|
Key Specs
- Maximum Lift Capacity: 6000 lb / 2721.55 kg
- Maximum Lift Height: 36 ft 1 in. / 11 m
- Maximum Reach: 22 ft 4 in. / 6.81 m
Key Features
- New, intuitive single joystick controls all boom functions
- Maximize productivity with improved boom speeds
- Redesigned cab includes new dashboard, integrated arm rest and optional air conditioning
- Increased operator confidence with Stabil-Trak rear axle stabilization system when placing a load
- 74 hp engine doesn’t require Diesel Exhaust Fluid (DEF) and meets Tier 4 Final regulations
- Greater job site versatility—rear counterweight includes an integrated tow hitch
