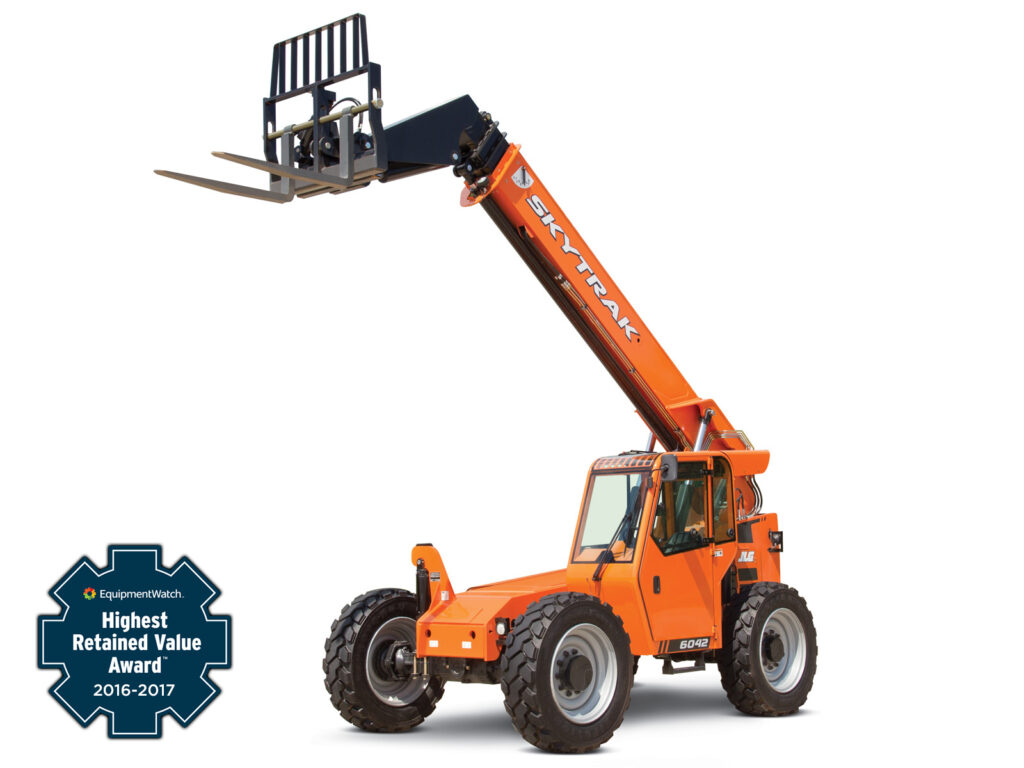

JLG 6042
Telehandlers
Equipment Features
- 74 hp engine doesn’t require Diesel Exhaust Fluid (DEF) and meets Tier 4 Final regulations
- Greater job site versatility—rear counterweight includes an integrated tow hitch
- Increased operator confidence with Stabil-Trak rear axle stabilization system when placing a load
| Axle-Front | High Bias, Limited Slip |
|---|---|
| Axle-Rear | Oscillating |
| Capacity - Fuel Tank | 35 gal. / 132.49 L |
| Drawbar Pull | 22000 lb / 9979.03 kg |
| Engine Horsepower Optional | 85 hp / 63.41 kW |
| Engine Horsepower | 74 hp / 55.20 kW |
| Engine Manufacturer | Cummins |
| Engine Model Optional | QSF3.8L Tier 4 Final |
| Frame Leveling | 10 Degrees |
| Ground Clearance | 1 ft 3 in. / 0.38 m |
| Lift Capacity at Full Height | 6000 lb / 2721.55 kg |
| Lift Capacity at Max Reach | 1400 lb / 635.03 kg |
| Load Center | 2 ft / 0.61 m |
| Machine Height | 8 ft 6 in. / 2.59 m |
| Machine Length | 19 ft 6 in. / 5.94 m |
| Machine Width | 8 ft 3 in. / 2.51 m |
| Maximum Engine RPM | 1400 rpm |
| Maximum Lift Height | 41 ft 11 in. / 12.78 m |
| Maximum Reach | 27 ft 11 in. / 8.51 m |
| Operating Vehicle Weight | 25100 lb / 11385.17 kg |
| Outriggers or Stabilizers | No |
| Outside Turning Radius | 14 ft / 4.27 m |
| Service Brake Type | Wet Multi-Disc |
| Speed - Maximum Lift | 14.3 sec. |
| Speed - Maximum Lower | 10.5 sec. |
| Speed - Maximum Telescope In | 17.2 sec. |
| Speed - Maximum Telescope Out | 17 sec. |
| Speed - Maximum Travel | 19 mph / 30.58 km/h |
| Tire Size | 370/75-28 |
| Transmission - Nr Forward Gears Standard | 4 |
| Transmission - Nr Reverse Gears | 3 |
| Transmission Type | Powershift |
| Wheelbase | 9 ft 5 in. / 2.87 m |
- Maximize productivity with improved boom speeds
- New, intuitive single joystick controls all boom functions
- Redesigned cab includes new dashboard, integrated arm rest and optional air conditioning
| Equipment Document | View Link |
|---|
Key Specs
- Maximum Lift Capacity: 6000 lb / 2721.55 kg
- Maximum Lift Height: 41 ft 11 in. / 12.78 m
- Maximum Reach: 27 ft 11 in. / 8.51 m
Key Features
- New, intuitive single joystick controls all boom functions
- Maximize productivity with improved boom speeds
- Redesigned cab includes new dashboard, integrated arm rest and optional air conditioning
- Increased operator confidence with Stabil-Trak rear axle stabilization system when placing a load
- 74 hp engine doesn’t require Diesel Exhaust Fluid (DEF) and meets Tier 4 Final regulations
- Greater job site versatility—rear counterweight includes an integrated tow hitch
