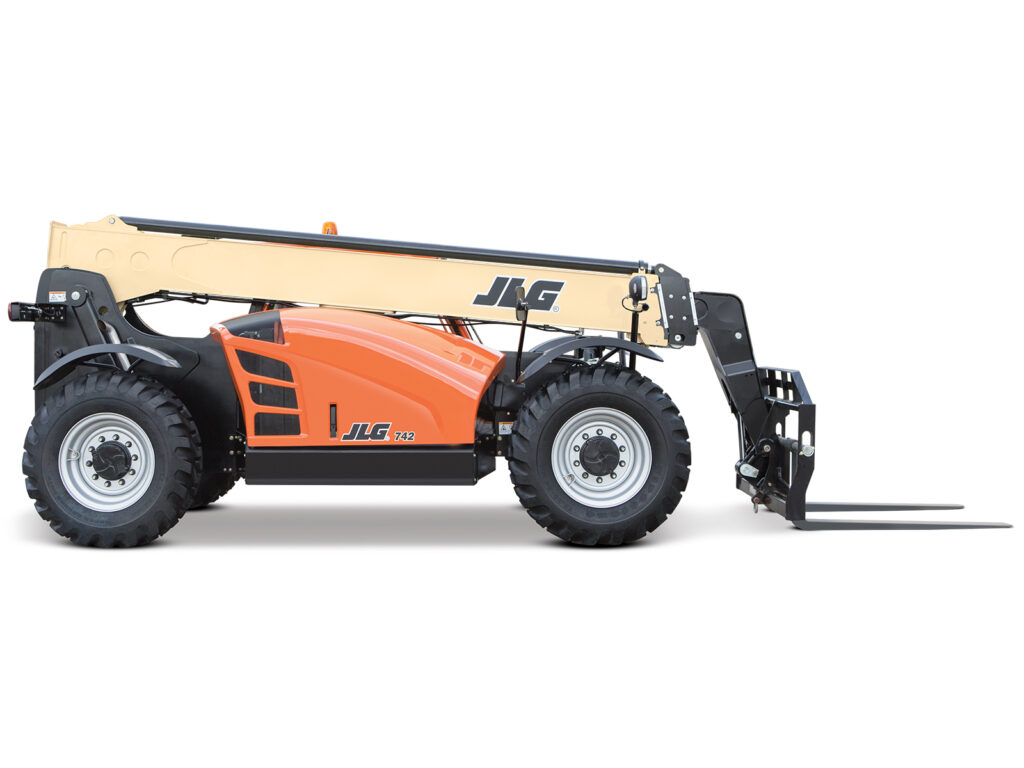

JLG 742
Telehandlers
Equipment Features
- 74 hp engine doesn’t require Diesel Exhaust Fluid (DEF) and meets Tier 4 Final regulations
- Enhanced operator comfort—spacious cab, intuitive single joystick and integrated arm rest
- Greater operator confidence— better visibility, Stabil-Trak rear axle stabilization, precision gravity lowering system, optional reverse sensing system and reversing camera
| Axle-Front | High Bias, Limited Slip |
|---|---|
| Axle-Rear | Oscillating |
| Capacity - Fuel Tank | 38.3 gal. / 144.98 L |
| Drawbar Pull | 19000 lb / 8618.26 kg |
| Engine Horsepower | 74 hp / 55.20 kW |
| Engine Manufacturer | Cummins |
| Engine Model | QSF 3.8L Tier 4 Final |
| Function Pump Type | Load Sensing Piston |
| Ground Clearance | 1 ft 5 in. / 0.43 m |
| Lift Capacity at Full Height | 6000 lb / 2721.55 kg |
| Lift Capacity at Max Reach | 1000 lb / 453.59 kg |
| Load Center | 50 ft / 15.24 m |
| Machine Height | 8 ft / 2.44 m |
| Machine Length | 23 ft 1 in. / 7.04 m |
| Machine Width | 8 ft 1 in. / 2.46 m |
| Maximum Engine RPM | 2500 rpm |
| Maximum Lift Capacity | 7000 lb / 3175.15 kg |
| Maximum Lift Height | 42 ft / 12.8 m |
| Maximum Reach | 29 ft 1 in. / 8.86 m |
| Operating Vehicle Weight | 21476 lb / 9741.35 kg |
| Outriggers or Stabilizers | No |
| Outside Turning Radius | 12 ft / 3.66 m |
| Service Brake Type | Wet Multi-Disc |
| Speed - Maximum Lift | 11.3 sec. |
| Speed - Maximum Lower | 9 sec. |
| Speed - Maximum Telescope In | 11.5 sec. |
| Speed - Maximum Telescope Out | 11 sec. |
| Speed - Maximum Travel | 18 mph / 28.97 km/h |
| Tire Size | 370/75-28 |
| Transmission - Nr Forward Gears Standard | 4 |
| Transmission - Nr Reverse Gears | 3 |
| Transmission Type | Powershift |
| Wheelbase | 11 ft 3 in. / 3.43 m |
- Increased versatility—wide range of attachment options
- Maximum serviceability— extended service intervals, easy-to-access parts and durable components for less overall maintenance
| Equipment Document | View Link |
|---|
Key Specs
- Maximum Lift Capacity: 7000 lb / 3175.15 kg
- Maximum Lift Height: 42 ft / 12.8 m
- Maximum Reach: 29 ft 1 in. / 8.86 m
Key Features
- Enhanced operator comfort—spacious cab, intuitive single joystick and integrated arm rest
- Maximum serviceability— extended service intervals, easy-to-access parts and durable components for less overall maintenance
- Greater operator confidence— better visibility, Stabil-Trak rear axle stabilization, precision gravity lowering system, optional reverse sensing system and reversing camera
- 74 hp engine doesn’t require Diesel Exhaust Fluid (DEF) and meets Tier 4 Final regulations
- Increased versatility—wide range of attachment options
