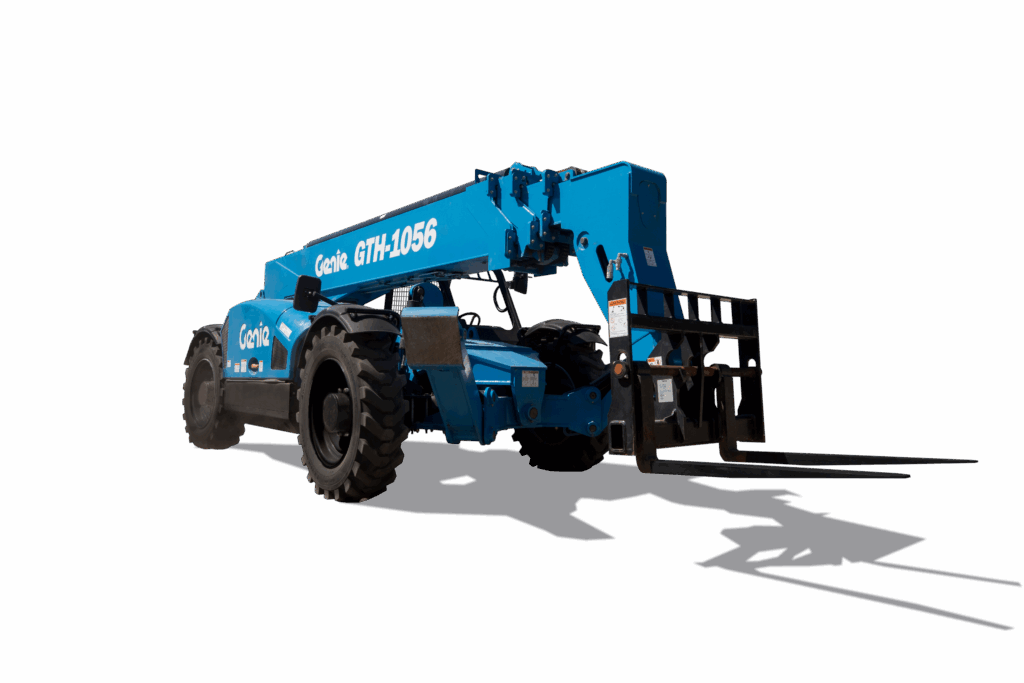

Genie GTH-1056
Aerial
The Genie® GTH™-1056 telehandler offers excellent lift capacity and a maximum forward reach 42 ft (12.8 m) to move heavy loads over obstacles. Powerful four-wheel drive and turbocharged diesel engine to handle even the toughest worksite conditions.
Overview
- Compact outside turning radius and excellent ground clearance
- Powershift transmission with three speeds forward and reverse
- Multi-function proportional joystick control for fast, precise positioning
- Frame-leveling chassis — pick up or place loads on up to 10˚ side slopes
| Capacity at Max Height | 4,000 lb | 1,814 kg |
|---|---|
| Capacity at Max Reach | 3,000 lbs | 1,361 kg |
| Max Forward Reach | 42 ft | 12.80 m |
| Max Lift Capacity | 10,000 lb | 4,536 kg |
| Max Lift Height | 56 ft 10 in | 17.32 m |
The Genie® GTH™-1056 telehandler offers excellent lift capacity and a maximum forward reach 42 ft (12.8 m) to move heavy loads over obstacles. Powerful four-wheel drive and turbocharged diesel engine to handle even the toughest worksite conditions.
Overview
- Compact outside turning radius and excellent ground clearance
- Powershift transmission with three speeds forward and reverse
- Multi-function proportional joystick control for fast, precise positioning
- Frame-leveling chassis — pick up or place loads on up to 10˚ side slopes
Cab Configuration
- Front and top glass
- Fully enclosed cab: full glass, heater, defroster, wipers, washer and split door
- Fully enclosed cab with air conditioner: full glass, heater, defroster, wipers, washer and split door
Tire Options
- Foam-filled rough terrain tires
- Solid rough terrain tires
Carriage/Attachment Options
- 48 in. manual Quick-Attach™ carriage
- 60 in. QA carriage
- 72 in. QA carriage
- 48 in. QA side tilt (rotating) carriage
- 60 in. QA side tilt (rotating) carriage
- 72 in. QA swing carriage (45 deg L/R)
- 14 ft.QA Variable reach truss boom
Fork Options
- 48 in. pallet forks (2 x 4 x 48 in.)
- Set of two 60 in. pallet forks, 2 x 4 x 60 in.
- Set of two 72 in. pallet forks, 2 x 4 x 72 in.
- Set of two 60 in. lumber forks, 1.75 x 7 x 60 in.
- Set of six 48 in. cubing tines, 2 x 2 x 48 in.
Accessories
- Electric block heater
- Dual joystick control
- Fire extinguisher
- Flashing beacon
- Right side steel mesh screen for open canopy
- Work lights: High output LED cab, boom, rear
- Road and Work lights: Work lights and front turn/headlights, rear stop/turn/tail
- Rear proximity alarm
- Rear proximity alarm ready
