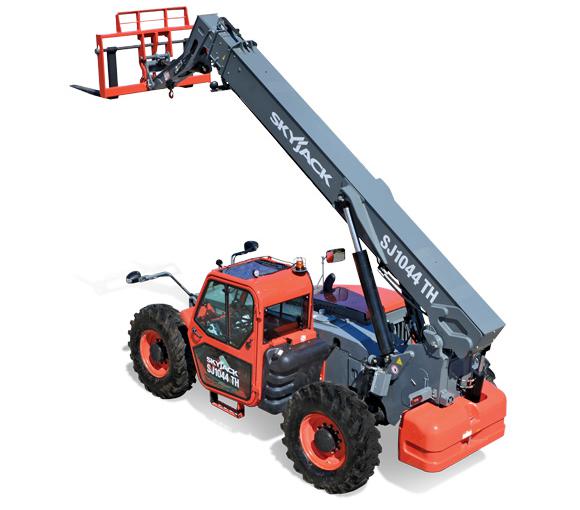

Skyjack SJ1044 TH
Telehandlers
Equipment Features
- 2 Year Gold Leaf Warranty (5 year structural warranty)
- Auxiliary hydraulics
- Engine block heater
- Fiberglass engine cowling
- Hydraulic test ports
- In cab engine multifunction display
- Lockable in cab storage box
- Quick attach carriage mount
- Rear window with wiper
- Single multifunction pilot operated joystick control
- Sliding side window
- Steel component and access covers
- Suspension seat
Overall Width
8’ 5” (2.56 m)
Ground Clearance
19” (48.3 cm)
Turning Radius (Outside)
147” (3.73 m)
Maximum Lift Capacity
10,000 lbs (4,535 kg)
Maximum Lift Height
44’ 3” (13.49 m)
Rated Lift Capacity @ Maximum Height
7,000 lbs (3,175 kg)
Maximum Forward Reach
29’ 6” (8.03 m)
Rated Lift Capacity @ Maximum Reach
1,800 lbs (816 kg)
O/A Length – LessForks
21’ 2” (6.45 m)
Overall Height – Stowed
8’ 1” (2.47 m)
Operating Weight
27,645 lbs (12,540 kg)
Engine
74hp / 287 lb/ft Deutz TCD 3.6L T4F
Max Travel Speed – Forward
15 mph (24 km/h)
Transmission
Dana Powershift, 3 Speeds F/R
Axles
Dana
Steering
3 mode (Front Wheel, 4 Wheel, Crab)
Tires
Pneumatic 14 x 24 16PR Grip Lug
