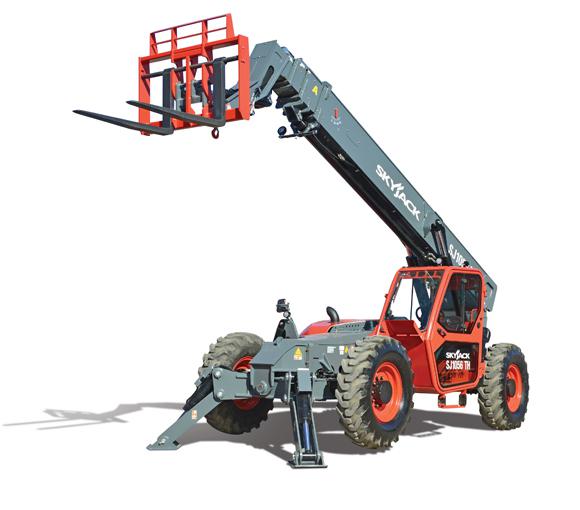

Skyjack SJ1056 TH

SJ1056 TH

Skyjack
Telescopic Handlers

Find a location to get your local store information and inventory.

Find Location

Your Preferred Store

Change location Change location

Request Quote

Key Features & Specs

2 Year Gold Leaf Warranty (5 year structural warranty)
Quick attach carriage mount
Lockable in cab storage box
In cab engine multifunction display
Sliding side window
Fiberglass engine cowling
Suspension seat
Auxiliary hydraulics
Engine block heater
Single multifunction pilot operated joystick control
Rear window with wiper
Steel component and access covers
Hydraulic test ports
Axle mount outriggers

Features
Documents

+ Expand All
- Close All

Overall Specifications

Overall Width

8’ 5” (2.56 m)

Ground Clearance

19” (48.3 cm)

Turning Radius (Outside)

153” (3.73 m)

Maximum Lift Capacity

10,000 lbs (4,535 kg)

Maximum Lift Height

56’ 3” (17.14 m)

Rated Lift Capacity @ Maximum Height

4,000 lbs (1,814 kg)

Maximum Forward Reach

42’ 6” (12.95 m)

Rated Lift Capacity @ Maximum Reach

3,000 lbs (1,361 kg) (w. O/R)

O/A Length - LessForks

22’ 2” (6.75 m)

Overall Height - Stowed

8’ 1” (2.47 m)

Operating Weight

31,500 lbs (14,288 kg)

Engine

74hp / 287 lb/ft Deutz TCD 3.6L T4F

Max Travel Speed - Forward

15 mph (24 km/h)

Transmission

Dana Powershift, 3 Speeds F/R

Axles

Dana

Steering

3 mode (Front Wheel, 4 Wheel, Crab)

Tires

Pneumatic 14 x 24 16PR Grip Lug
