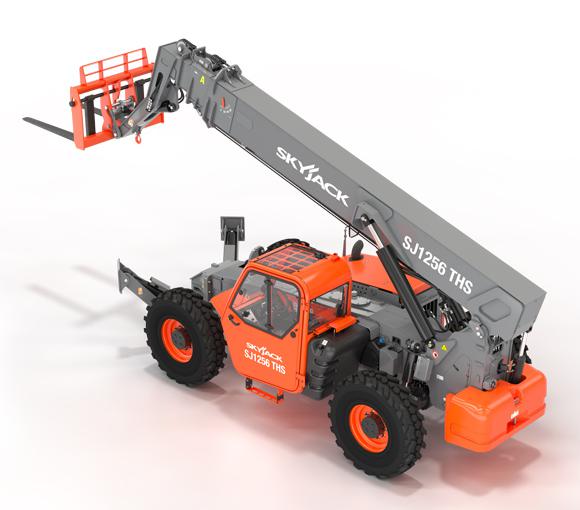

Skyjack SJ1256 THS
Telehandlers
Equipment Features
- 2 Year Gold Leaf Warranty (5 year structural warranty)
- Auxiliary hydraulics
- Axle mount outriggers
- Engine block heater
- Fiberglass engine cowling
- Hydraulic test ports
- In cab engine multifunction display
- Lockable in cab storage box
- Quick attach carriage mount
- Rear window with wiper
- Side window
- Single multifunction pilot operated joystick control
- Steel component and access covers
- Suspension seat
- Telematics ready
Overall Width
8’ 5” (2.56 m)
Ground Clearance
19” (48.3 cm)
Turning Radius (Outside)
173” (4.39 m)
Maximum Lift Capacity
12,000 lbs (5,443 kg)
Maximum Lift Height
56’ 3” (17.14 m)
Rated Lift Capacity @ Maximum Height
6,000 lbs (2,721 kg)
Maximum Forward Reach
42’ 6” (12.95 m)
Rated Lift Capacity @ Maximum Reach
7,000 lbs (3,175 kg) (w. O/R)
O/A Length – LessForks
23’ 1” (7.03 m)
Overall Height – Stowed
8’ 6” (2.59 m)
Operating Weight
34,500 lbs (15,649 kg)
Engine
107hp / 320 lb-ft Deutz TCD 3.6L T4F
Max Travel Speed – Forward
15 mph (24 km/h)
Transmission
Dana Powershift, 3 Speeds F/R
Axles
Dana
Steering
3 mode (Front Wheel, 4 Wheel, Crab)
Tires
Pneumatic 14 x 24 16PR Grip Lug
