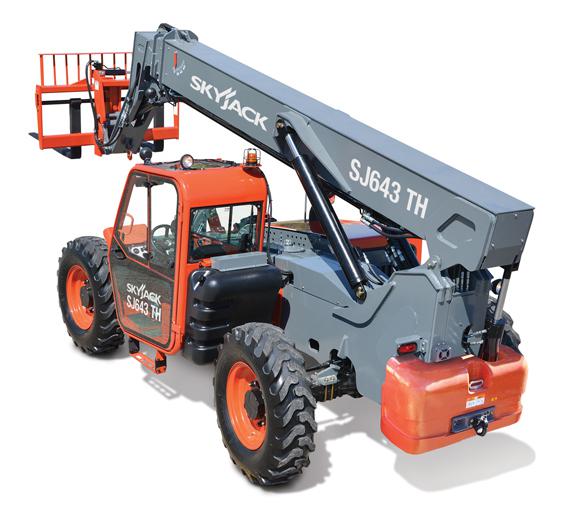

Skyjack SJ643 TH
Telehandlers
Equipment Features
- 2 Year Gold Leaf Warranty (5 year structural warranty)
- Auxiliary hydraulics
- Engine block heater
- Fiberglass engine cowling
- Hydraulic test ports
- In cab engine multifunction display
- Lockable in cab storage box
- Quick attach carriage mount
- Rear window with wiper
- Single multifunction pilot operated joystick control
- Sliding side window
- Steel component and access covers
- Suspension seat
Overall Width
8’ 5” (2.56 m)
Ground Clearance
19" (48.3 cm)
Turning Radius (Outside)
147" (3.73 m)
Maximum Lift Capacity
6,000 lbs (2,722 kg)
Maximum Lift Height
43’ 4” (13.21m)
Rated Lift Capacity @ Maximum Height
6,000 lbs (2,722 kg)
Maximum Forward Reach
28’ 7” (8.71m)
Rated Lift Capacity @ Maximum Reach
1,000 lbs (454 kg)
Frame Leveling (degrees)
+/- 11
O/A Length – LessForks
19’ 6” (5.94 m)
Overall Height – Stowed
7’ 11” (2.41 m)
Operating Weight
19,640 lbs (8,908 kg)
Engine
74 hp / 221 lb/ft Deutz TCD2.9L T4F
Max Travel Speed – Forward
17mph (27 km/h)
Transmission
Dana Powershift, 3 speeds F/R
Axles
Dana
Steering
3 mode (Front Wheel, 4 Wheel, Crab)
Tires
Pneumatic 13 x 24 16 PR Grip Lug
