Icon i20L
Electric Utility Vehicles
Equipment Specifications
| Body | Injection Molded Thermoplastic that is both stylish and resilient to outside damage |
|---|---|
| Braking System | Four Wheel Disc Brakes and Electromagnetic Parking Brake System |
| Capacity | 2 People |
| Chassis | Tubular Powder Coated Steel Frame |
| Colors | White, Black, Sangria, Orange, Purple, Torch Red, Champagne, Yellow, Lime Green, Forest Green, Caribbean Blue, Silver, Indigo Blue |
| Dash Components | Forward/Neutral/Reverse Switch, USB and 12V Plugs, Cubby Storage, Multiple Cup Holders, Key Switch, Instrumentation Cluster |
| Drivetrain | 14:1 High Speed Rear Axle |
|---|---|
| Floor | High-Density Polyethylene molded for extra strength and toughness with Rubber Floor Mat |
| Front Suspension | Macpherson Style Fully Independent Coil Over Shock |
| Golf Package | Sand/Seed Bottles, Ball/Club Washer, Cooler, Sweater Basket all included |
| Instrumentation | Fully Integrated Digital Instrument Cluster |
| Lighting and Signals | Single Combination Switch for LED Projector Hi & Lo Beam Headlights, LED Signal Lights, Taillights, and Horn |
| Mirrors | Fully Adjustable and Foldable |
| Overall Dimensions | 101inx53inx82in |
| Rear Suspension | Solid Axle Coil Over Shock and Stabilizing Bar |
| Roof | Innovative air deflecting design with full high-strength aluminum frame |
| Safety Restraint | Side Hip Restraint & Retractable Seat Belts |
| Seats | Marine Grade Vinyl, Custom Stitched Panel, Single Color, Color Matched with White or Black Accents. Fold Flat Rear Seat for Hauling |
| Steering | Self-Adjusting Double-Ended Rack and Pinion |
| Tires | 23×10.5-12 4 Ply Nylon Cord |
| Weight | 1278 lbs |
| Wheels | 12 Inch Machined Face Aluminum with Powder Coated Accents |
| Windshield | Foldable Acrylic/Optional DOT Acrylic |
| Spec Sheet | View Link |
|---|

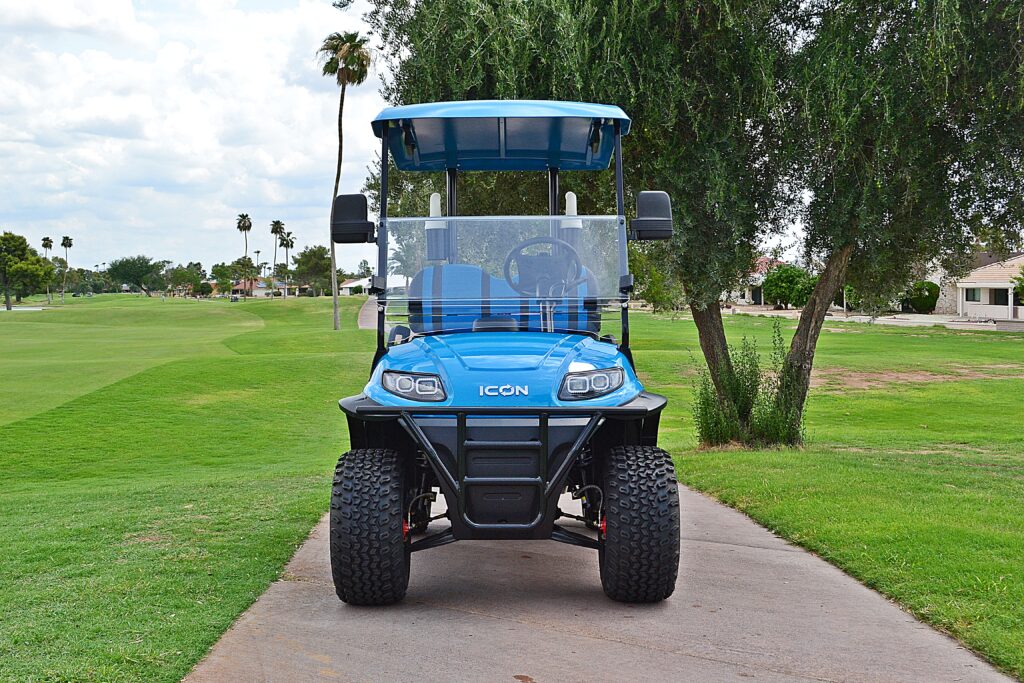

Up your game with this lifted two-seater ICON i20L golf cart! The lifted i20’s are loaded with class-leading features like 12″ aluminum wheels, lights, turn signals, high-speed rear ends, functional front and rear bumpers, painted rooftops, horns, digital gauges, and more.
The ICON i20L comes standard with (6) 8V Sealed Maintenance-Free AGM batteries, an upgraded 48V ICON 5kW 3 Phase High Torque motor, and a controller for ICONIC performance! Optional upgrade to 51V 105AH Eco Lithium Battery now available!
Controller
450A ICON Controller
Motor
48V ICON 5kW 3 Phase High Torque Motor
Charger
ICON 48V Onboard Charging System with Body Mounted Charge Indicator
Batteries
(6) 8V Sealed Maintenance-Free AGM Batteries, or an optional upgrade to 51V 105AH Eco Lithium Battery now available!
