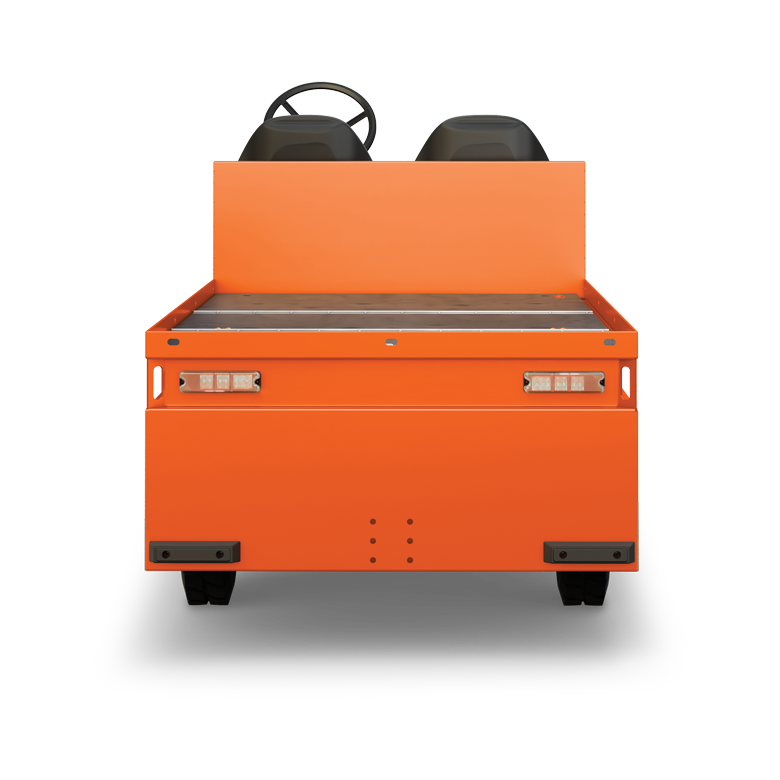

Motrec MC-480
Electric Utility Vehicles
The MC-480 has long been the ruler of rugged, reliable burden carriers. On top of boasting a smart modular design, an all-steel unibody and advanced engineering, this high-efficiency AC vehicle offers a roomier and more ergonomic driver compartment to make long shifts more comfortable and productive. If you need a do-it-all vehicle that’s strong, safe and easy to operate, you can’t beat the MC-480 – or its unlimited configurations and 3-year warranty.
- Specifications
- Features
- Links
- Description
- FULL SPECIFICATIONS OF OUR 48V LITHIUM SOLUTION
- SpecificationsTable
| Load capacity | 2,000 lbs |
|---|---|
| Passengers | 2 |
| Speed | 10 mph |
| Towing Capacity | 6,000 lbs |
| Turning Radius | 127" |
- AC controller with sealed connectors paired with multifunction display allows for precise speed control for greater safety and vehicle performance. Includes indicators for speed, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.
- Console on steering column complete console on steering column to put all controls and displays conveniently right where your fingers and eyes are. Now with a tilted steering column for a more ergonomic and natural driving posture to reduce operator fatigue and strain.
- High-efficiency asynchronous AC / Direct Drive motor offers better control for full motor performance, as well as higher possible speeds and better torque at low speeds. Maintenance-free brushless electric motor equipped with temperature and speed sensors.
- Reinforced bolt-on front and rear bumpers protects vehicle components from damage and keeps maintenance costs low. Equipped with anchors for easier towing. Bumpers are easy to replace when needed. An easy, low-cost way to protect your investment.
- Time-saving roll-out battery compartment makes changing batteries extremely quick and easy. Just roll out the compartment to replace the battery with a fresh one and you’re good to go. Keeps vehicles running round-the-clock. Easy maintenance.
| Download Specs Sheet | View Link |
|---|
The MC-480 has long been the ruler of rugged, reliable burden carriers. On top of boasting a smart modular design, an all-steel unibody and advanced engineering, this high-efficiency AC vehicle offers a roomier and more ergonomic driver compartment to make long shifts more comfortable and productive. If you need a do-it-all vehicle that’s strong, safe and easy to operate, you can’t beat the MC-480 – or its unlimited configurations and 3-year warranty.
| MC-480 | 6.2 Kwh (120 Ah) | 1.2 Kwh | 4h | 120V or 240V | 83.8 lbs |
| 9.3 Kwh (180 Ah) | 1.2 Kwh | 4h | 125.7 lbs | ||
| 3.6 Kwh | 2.5h | 240V | |||
| 18.6 Kwh (360 Ah) | 3.6 Kwh | 4h | 251.4 lbs |
|
36V LD |
48V LD |
36V |
48V |
48V HD |
|
|---|---|---|---|---|---|
|
Passengers |
2 |
2 |
2 |
2 |
2 |
|
Load Capacity |
2,000 lbs. |
2,000 lbs. |
3,500 lbs. |
3,500 lbs. |
5,000 lbs. |
|
Towing Capacity |
6,000 lbs. |
6,000 lbs. |
6,000 lbs. |
6,000 lbs. |
6,000 lbs. |
|
Speed |
10 mph |
10 mph |
10 mph |
10 mph |
10 mph |
|
Turning Radius |
127 " |
127 " |
127 " |
127 " |
127" |
|
POWERTRAIN |
|||||
|
Motor |
Brushless AC motor, 10 HP Max (7.5 HP Continuous) |
Brushless AC motor, 15 HP Max (9 HP Continuous) |
Brushless AC motor, 10 HP Max (7.5 HP Continuous) |
Brushless AC motor, 15 HP Max (9 HP Continuous) |
Brushless AC motor, 15 HP Max (9 HP Continuous) |
|
Drive Axle |
Helical gear differential |
Helical gear differential |
Helical gear differential |
Helical gear differential |
Helical gear differential |
|
Transmission |
Direct drive |
Direct Drive |
Direct drive |
Direct Drive |
Direct Drive |
|
Controller |
AC Electronic speed controller |
AC Electronic speed controller |
AC Electronic speed controller |
AC Electronic speed controller |
AC Electronic speed controller |
|
ENERGY |
|||||
|
Voltage |
36V |
48V |
36V |
48V |
48V |
|
Battery |
Six 6V-225AH batteries |
Eight 6V-225AH batteries |
Six 6V-225AH batteries |
Eight 6V-225AH batteries |
Eight 6V-225AH batteries |
|
Charger |
High-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automatic. |
High-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automatic. |
High-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automatic. |
High-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automatic. |
High-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automatic. |
|
CHASSIS |
|||||
|
Body |
All-steel unibody construction. Powder Coating. |
All-steel unibody construction. Powder Coating. |
All-steel unibody construction. Powder Coating. |
All-steel unibody construction. Powder Coating. |
All-steel unibody construction. Powder Coating. |
|
Suspension |
Dual leaf springs on front and rear |
Dual leaf springs on front and rear |
Dual leaf springs on front and rear |
Dual leaf springs on front and rear |
Dual leaf springs on front and rear |
|
Brakes |
Rear hydraulic drum brakes, hand lever parking brake, regenerative braking |
Rear hydraulic drum brakes, hand lever parking brake, regenerative braking |
Rear hydraulic drum brakes, electromagnetic parking brake with manual hand release, regenerative braking |
Rear hydraulic drum brakes, electromagnetic parking brake with manual hand release, regenerative braking |
Rear disc brakes, electromagnetic parking brake with manual hand release, regenerative braking |
|
Wheels |
5.7×8 LRD pneumatic tires |
5.7×8 LRD pneumatic tires |
5.7×8 LRD pneumatic tires |
5.7×8 LRD pneumatic tires |
500×8 solid softy rubber wheels on split rims |
|
Steering |
Automotive steering wheel, tilted steering column |
Automotive steering wheel, tilted steering column |
Automotive steering wheel, tilted steering column |
Automotive steering wheel, tilted steering column |
Automotive steering wheel, tilted steering column |
|
Seats |
Two bucket seats on slide adjusters |
Two bucket seats on slide adjusters |
Two premium seats on slide adjusters |
Two premium seats on slide adjusters |
Two premium seats on slide adjusters |
|
EQUIPMENT |
|||||
|
Lights |
LED dual headlights & tail/brake lights, dual back-up lights |
LED dual headlights & tail/brake lights, dual back-up lights |
LED dual headlights & tail/brake lights, dual back-up lights |
LED dual headlights & tail/brake lights, dual back-up lights |
LED dual headlights & tail/brake lights, dual back-up lights |
|
Indicators |
Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability. |
Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability. |
Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability. |
Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability. |
Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability. |
|
Accessories |
Console on steering column, bolt-on front bumper, DC/DC converter to equalize battery cells, LED charge indicator |
Console on steering column, bolt-on front bumper, DC/DC converter to equalize battery cells, LED charge indicator |
Console on steering column, bolt-on front bumper, DC/DC converter to equalize battery cells, LED charge indicator |
Console on steering column, bolt-on front bumper, DC/DC converter to equalize battery cells, LED charge indicator |
Console on steering column, bolt-on front bumper, DC/DC converter to equalize battery cells, LED charge indicator |
|
Safety |
Deadman seat switch, reverse alarm, horn |
Deadman seat switch, reverse alarm, horn, automatic parking brake |
Deadman seat switch, reverse alarm, horn |
Deadman seat switch, reverse alarm, horn, automatic parking brake |
Deadman seat switch, reverse alarm, horn, automatic parking brake |
|
VEHICLE |
|||||
|
Weight |
5,350 lbs |
||||
|
Height |
54" |
54" |
54" |
54" |
54" |
|
Length |
126" |
126" |
126" |
126" |
126" |
|
Width |
45" |
45" |
45" |
45" |
45" |
|
Wheel Base |
56" |
56" |
56" |
56" |
56" |
|
DECK |
|||||
|
Deck Height |
31" |
31" |
31" |
31" |
31" |
|
Deck Length |
76" |
76" |
76" |
76" |
76" |
|
Deck Width |
45" |
45" |
45" |
45" |
45" |
|
BATTERY |
|||||
|
Battery Weight |
|||||
|
Battery Height |
|||||
|
Battery Length |
|||||
|
Battery Width |
