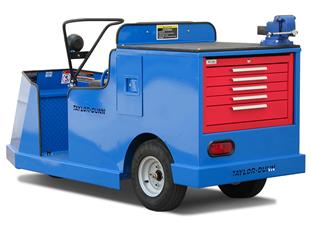

Taylor-Dunn MX-600
Electric Utility Vehicles
Equipment Features
- 24 volt electric
- 5-drawer steel lockable tool chest
- Indoor and outdoor use
| Chassis: Battery | Type: Four 210 amp hr., 6 volt (lead acid) System Voltage: 24 Charger: Portable, 25 Amp, SCR Control |
|---|---|
| Chassis: Brakes | Rear: Two wheel mechanical drum with brake light Front: N/A Parking: Foot Operated |
| Chassis: Frame Construction | All steel unitized body, heavy duty 14 gauge smooth plate |
| Chassis: Powertrain | Type: Electric Power: 110/220V, 50/60Hz Transmission: Transaxle Assembly, Sealed Helical Gear Reduction Drive: Direct Drive Controller: Solid State Speed Control |
| Chassis: Steering | Manual, Tiller, Front Fork |
| Chassis: Suspension | Rear: Front: |
| Chassis: Tires | Rear: 4.80 x 8 pneumatic Front: 4.80 x 8 Load Range B, Pneumatic |
| Dimensions: Deck | Width: 30" (76.2cm) Length: 27" (68.6cm) Height: 36" (91.4cm) |
| Dimensions: Height | Less Cab: 40" (102 cm) With Cab: N/A |
| Dimensions: Hitch Height | N/A |
| Dimensions: Length | 86" (218 cm) |
| Dimensions: Outside Turning Radius | 81" (205.1cm) |
| Dimensions: Weight | 890 lbs. (404 kg.) |
| Dimensions: Wheel Base | 55.5" (140.0cm) |
| Dimensions: Width | 32" (81 cm) |
| Interior: Instrumentation | Battery status indicator, forward/reverse selector, key switch, reverse buzzer and electric horn |
| Interior: Seats | Driver: Seat Cushion with Full Backrest Passenger: N/A |
| Performance: Load Capacity | 600 lbs. (272 kg) |
| Performance: Passengers | 1 |
| Performance: Range | 20 miles (32 km) |
| Performance: Speed | 9 mph (14.4 km/h) |
| Performance: Tow Capacity | 2,000 lbs. (909 kg) |
- Load capacity of 600 pounds
- Lockable storage cabinet
- One person capacity
- Range up to 20 miles
- Speed up to 9 mph
- Tow capacity of 2,000 pounds
- Work bench and vise
| Brochure | View Link |
|---|
The MX-600 improves repair and maintenance productivity by reducing the time to each equipment to be serviced and providing a mobile work shop at the service site.
Equipped with 24-volt battery system, the MX-600 can travel at speeds of 9 mph. An all welded steel unitized body and frame is built to last for years of use. The modularized control system design provides ease of maintenance on all electrical systems. Safety loop tiller steering protects the driver, and a solid state controller and hall effect accelerator module provide safe acceleration during daily operation.
Popular Accessories soft solid tires, steel cab, roll-down enclosure, geared steering, strobe light, motion alarm, front bumper, side mirrors, non-marking tires, hitches, onboard charger and high capacity batteries.
