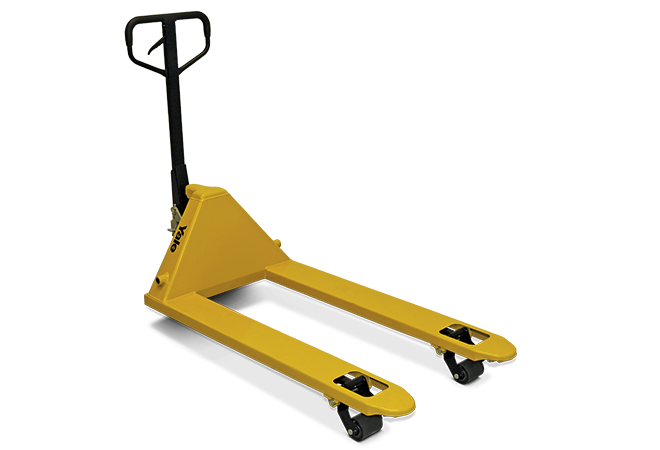

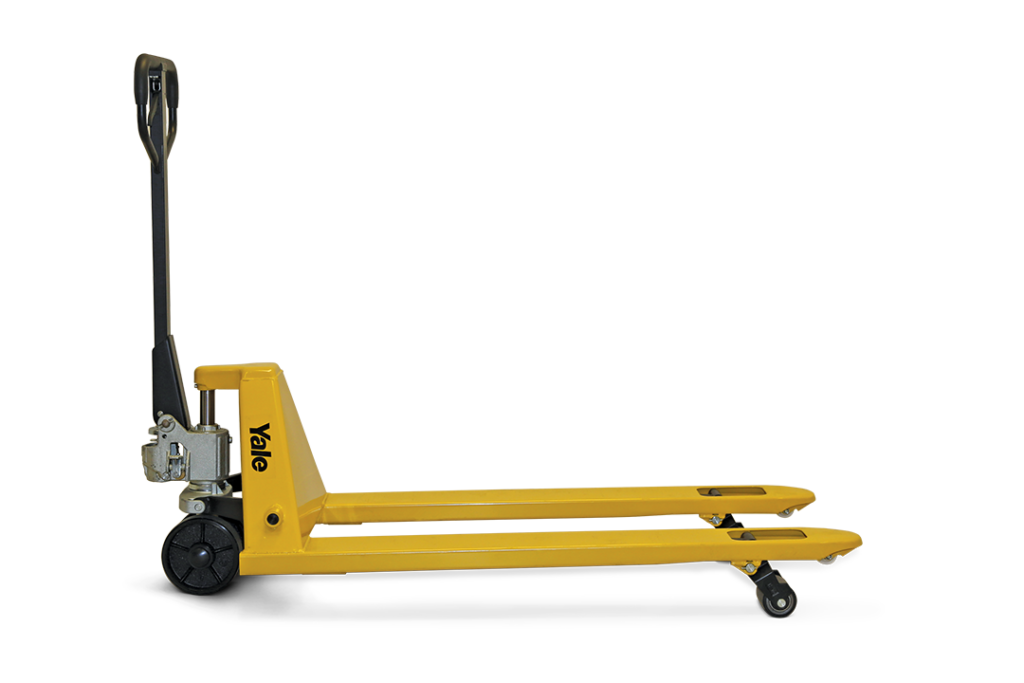

Yale YA55-PT
Forklifts
Durable, Versatile, Easy to Use Manual Hand Pallet Trucks
The Yale® YA55-PT manually operated hand pallet trucks are durable, versatile and easy to use and feature an ergonomic design that may reduce operator fatigue and downtime. The YA55-PT provides exceptional maneuverability in compact areas and the standard polyurethane wheels and rollers provide outstanding rolling ease.
| Capacity | 5,500 lbs |
|---|---|
| Max Height | 7 |
| Max Weight | 5500 lbs |
| Series Title | YA55-PT |
| Type | Manual Hand Pallet Trucks |
| Weight | lbs |
- 10 full strokes to reach maximum lift
- 2 Year warranty on hydraulic unit and frame
- 2.1" thick steel c-channel
- 9" handle base
- Articulating axle keeps load stable and acts as a shock absorber
- Backrests
- Cushioned handle providing operator comfort
- Entry rollers prevent "pushing" the pallet upon entry
- Exit rollers prevent "pulling" the pallet when exiting
- Grease and oil fittings at all castings and pivot points
- Grooved lever plate and fool release pedal for quick and convenient lowering option
- Handle bolt designed for easy assembly and removal
- Handle-return spring guard
- Heavy duty 1.25" thinks steel adjustable push rods
- Nylon load wheels
- Parking brake
- Poly/steel steer wheel
- Powder-coat paint finish
- Quick-lift pump units
- Rebuildable pump
- Stainless steel and galvanized trucks available
- Tandem load wheels
- Various fork lengths and widths
| Model | Load Capacity (lbs.) | ChassisWidth | Weight (lbs.) | Fork Length |
|---|---|---|---|---|
| YA55-PT-20.5 | 5500 | 20.5 | 180 | 48 |
| YA55-PT-27 | 5500 | 27 | 180 | 48 |
