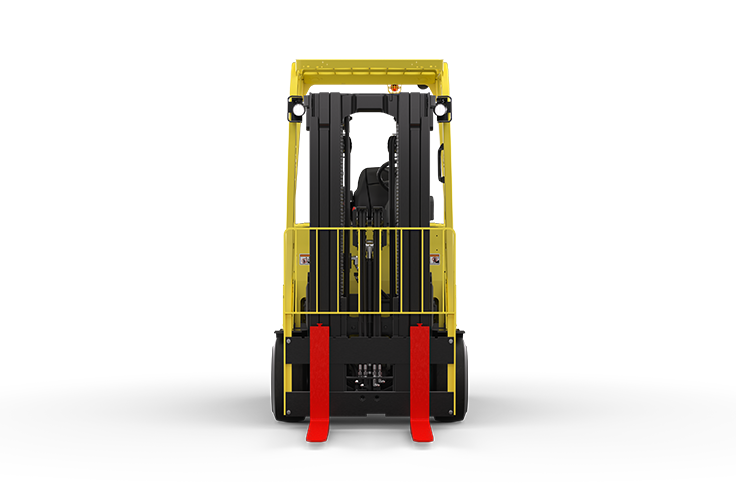

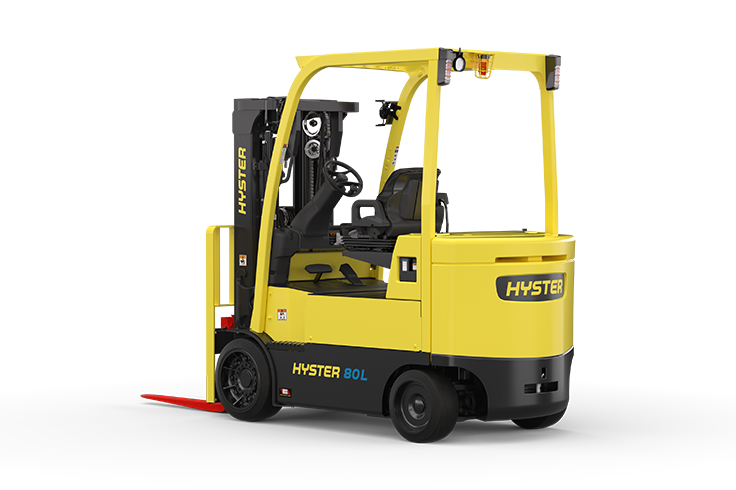

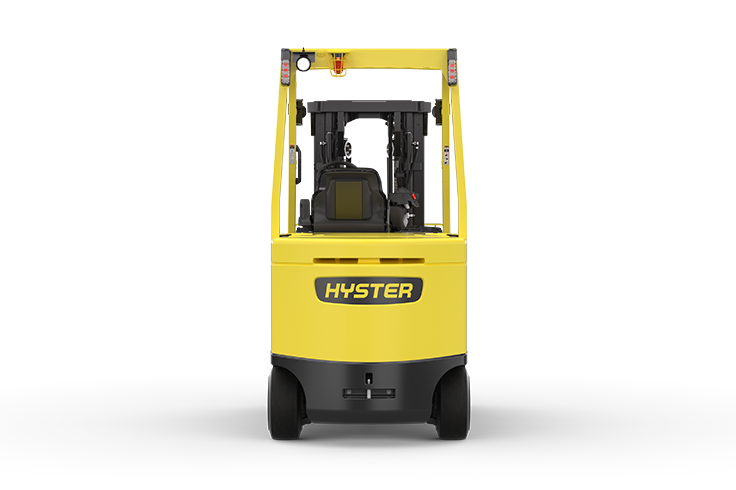

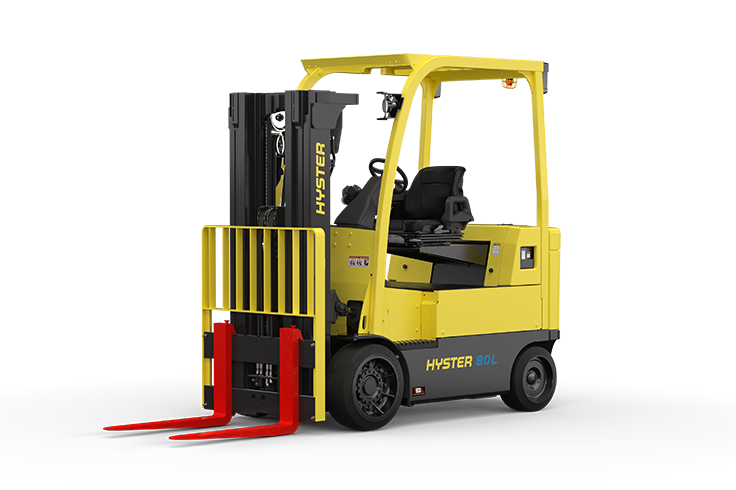

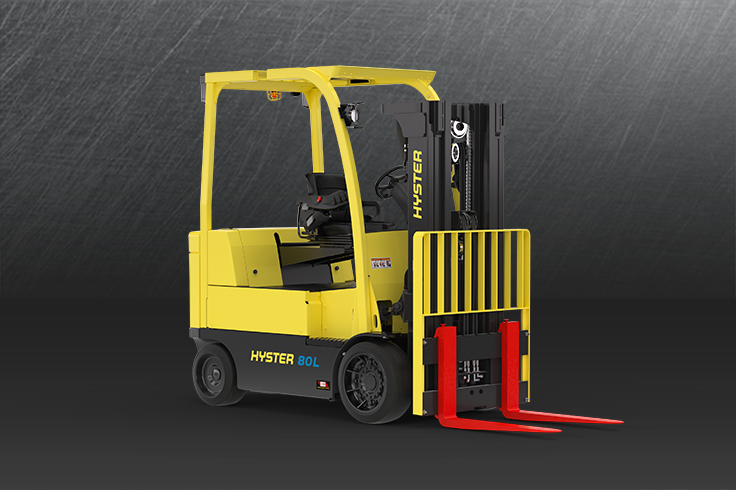

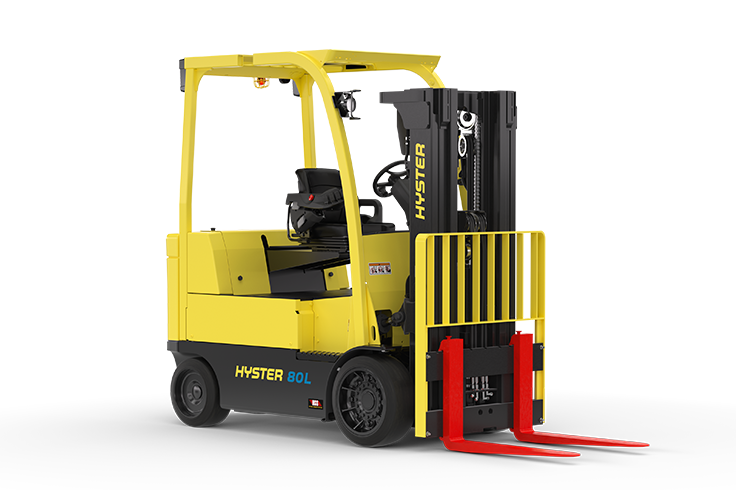

Hyster E80XNL
4 Wheel Electric Trucks
The E80XNL provides best in class ergonomics, improved energy efficiency, zero emissions (including no off-gassing during charging process), and low noise operation, making it the ideal solution for customers looking to convert IC trucks to electrics.
| max_lift_height | 120 |
|---|---|
| models | E80XNL |
| load_weight | 8000lbs |
| capacity | 8000lbs |
- Improved energy efficiency
- Operator comfort
- Best in class ergonomics
The E80XNL has been specifically designed to take advantage of the form factor of the lithium-ion battery pack, creating greater space in the operator compartment and lowering the center of gravity. Lithium-ion power is an ideal solution for heavy-duty applications due to zero battery maintenance, fast charging, and a long battery life.
- Air-ride vinyl and cloth seat options allow for a smoother ride, improving operator comfort.
- Spacious operator compartment allows for more freedom to position feet during operation.
- Multiple battery sizes allowing to tailor fit application needs
- 52.4 kWh (83.2V @ 630 Ah)
- 43.7 kWh (83.2V @ 525 Ah)
- 34.9 kWh (83.2V @ 420AH)
- Fast charging speeds available
- 34.9kW battery can be fully charged in as little as approximately 1 hour and 15 minutes with 30kW charger
- 52.4kW battery can be fully charged in as little as approximately 1 hour and 45 minutes with 30kW charger
- For applications with high ambient temperatures and/or high charging demands, cooling options are available. Vented paneling and fans pull air across the battery. Fans will run when:
- Battery enters thermal cutback
- Anytime battery is on charge
The sealed, integrated lithium-ion battery requires zero maintenance and gives off zero emissions with no gassing.
- No more watering
- No more acid
- No more spills
- No more fumes
- No more cleaning
- No more equalizing
Available onboard charging option provides the flexibility to charge via a cable and adaptors that connect to commonly available electrical outlets, in addition to traditional off-board fast charging.
- Although longer than the standard battery box E80XN, for ICE replacement, E80XNL is:
- ~3.2” shorter than an S80FT truck
- Improves Outside Turning Radius (OTR) by ~2.3” when comparted to an S80FT truck
- Improves Right Angle Stack by ~2.1” when compared to an S80FT truck
