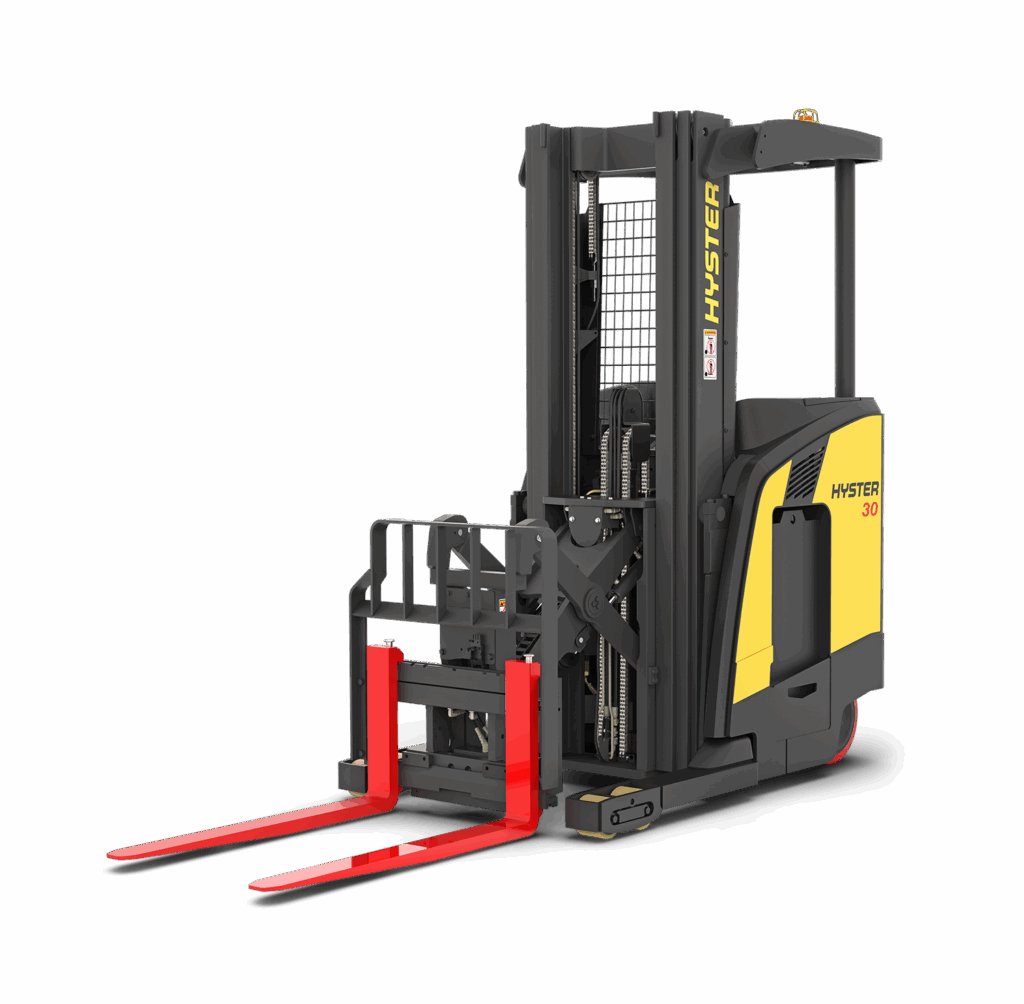

N30-35ZDR2, N30ZDRS2, N35-45ZR2, N35-40ZRS2

  • Hyster®
  • Reach Trucks

Find a location to get your local store information and inventory.

Find Location
Your Preferred Store
Change location Change location
Request Quote
Key Features & Specs

Superior Value is in Your Reach!


This reach truck series is designed for indoor use and is ideally suited for a variety of applications such as general warehousing, retail and grocery wholesale.

Choose from single or double reach trucks with either fore/aft or side stance configurations and a variety of optional features available.

AC Power, Hyster® i3 Technology™ CANBus communication system, electric steer, and regenerative lowering all contribute to the durability and reliability of these Narrow Aisle reach trucks. As with other Hyster® lift trucks, they are designed with superior ergonomics for versatility and productivity.

  • Completely brushless AC traction, hoist and auxiliary function motors eliminate brush replacement and help reduce service time
  • CANbus communication system reduces wiring and electrical connections and provides real time diagnostics
  • Full diagnostics are standard, easing serviceability, helping reduce troubleshooting time and vehicle downtime. Easy access to all components for regular maintenance and repair
  • Redesigned Master Drive Unit (MDU) offers superior protection and less maintenance with a drive unit that is sealed for life meaning no oil changes required. It also provides a debris guard for protection against shrinkwrap and serviceable wheel seal.
  • Four programmable vehicle modes are available for maximum speed, acceleration, deceleration and hydraulic ramping
  • Configuration flexibility Provides optimal operator positioning. Ability to select different stances (Fore/Aft or Side stance) and different control handle configurations.
  • A thermal management system for all motors and controllers add protection from overheating
  • 6.9” 3-stage (lift heights 272” to 422’’)
  • 5.5” standard duty 3-stage (lift heights 191” to 272”)
  • 5.5” heavy duty 3-stage (lift heights 212” to 293”)
  • Hyster® i3 Technology™ integrates commonality among Hyster® warehouse products and simplifies the way in which operators and technicians alike handle and service the truck. The Integrated Intelligent Interface ties together functionality, software, diagnostic codes, similar interfaces, and is Hyster® Tracker compatible. This technology allows operator input to optimize performance to suit operator skill level. It also provides setup and diagnostic menus for service technicians.
  • Three mast configurations are available 5.5” standard duty 3-stage (lift heights 191” to 272”) 5.5” heavy duty 3-stage (lift heights 212” to 293”) 6.9” 3-stage (lift heights 272” to 422’’)
  • + Expand All
  • - Close All
  • ModelTable
    Model Load Capacity (lbs) Battery Maximum Travel Speed (mph) Maximum Lift Speed (ft/min) Lower Lift Speed (ft/min)
    N30ZDRS2 Double Reach 3000 36 6.7 75 85
    N35ZRS2 Single Reach 3500 36 6.7 75 85
    N40ZRS2 Single Reach 4000 24 7.4 75 85
    N30ZDR2 Double Reach 3000 36 7.4 100 95
    N35ZDR2 Double Reach  3500 36 7.4 114 105
    N35ZR2 Single Reach 3500 36 7.4 100 95
    N40ZR2 Single Reach 4000 36 7.4 100 95
    N45ZR2 Single Reach 4500 36 7.4 114 105
  • Type: REACH TRUCK FORKLIFT
  • Weight: lbs
  • Max Height: 422
  • Series Title: N30-35ZDR2, N30ZDRS2, N35-45ZR2, N35-40ZRS2
  • Max Weight: 4000 lbs
  • Capacity: 3,000 - 4,500 lbs
