Hyster N35-45ZR3, N30-35ZDR3, N35-40ZRS3, N30ZDRS3
Forklifts
Equipment Specifications
| Capacity | 3,000 - 4,500 lbs |
|---|---|
| Max Height | 422 |
| Max Weight | 4000 lbs |
| Series Title | N35-45ZR3, N30-35ZDR3, N35-40ZRS3, N30ZDRS3 |
| Type | Reach Truck Forklift |
| Weight | lbs |
MORE THAN HUMANLY POSSIBLE

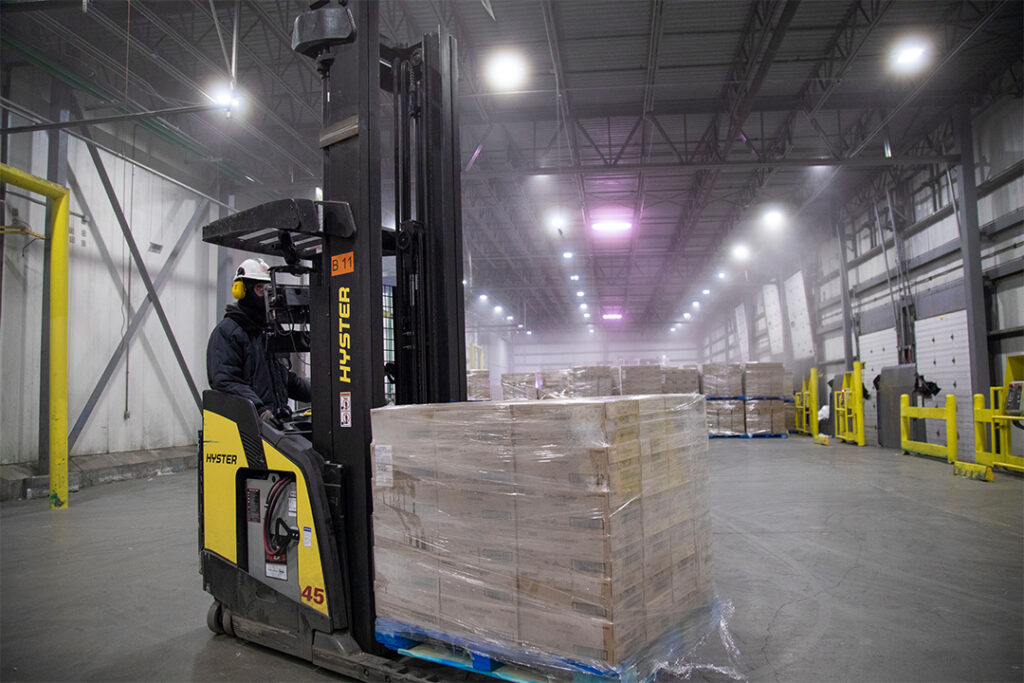

This reach truck series is designed for indoor use and is ideally suited for a variety of applications such as general warehousing, retail and grocery wholesale.
Choose from single or double reach trucks with either fore/aft or side stance configurations and a variety of optional features available.
As with other Hyster® lift trucks, they are designed with superior ergonomics for versatility and productivity.
Industry leading lift/lower cycle times while using less energy
Our trucks move more pallets than our competitors while using less energy, helping increase productivity by as much as 7% per truck, per shift, while using up to 20% less energy.
Industry exclusive ergonomic features
Industry exclusive ergonomic features and pedal-free design provide flexibility within the compartment for a comfortable and natural operating experience.
Best-in-class forward visibility
Up to 33% greater visibility through the mast, combined with industry exclusive design features, allows the operator to see the tip of the forks, eliminating guesswork on where to place the load. This helps reduce facility, product and truck damage, while allowing for enhanced precision and speed.
Simple and cost-effective service
Simplified routine maintenance helps to reduce overall cost of operation by saving you up to $2500 per truck per year.
Note: All competitive data is based on testing by the OEM in real-world environments at select warehouse locations.
| Model | Load Capacity (lbs) | Battery | Maximum Travel Speed (mph) | Maximum Lift Speed (ft/min) | Lower Lift Speed (ft/min) |
|---|---|---|---|---|---|
| N35ZR3 Single Reach | 3500 | 36 | 7.5 | 130 | 110 |
| N40ZR3 Single Reach | 4000 | 36 | 7.5 | 150 | 110/140 |
| N30ZDRS3 Double Reach | 3000 | 24/36 | 6.5 | 66/77 | 85 |
| N45ZR3 Single Reach | 4500 | 36 | 8 | 175 | 140/160 |
| N35ZDR3 Double Reach | 3500 | 36 | 8 | 175 | 140/160 |
| N30ZDR3 Double Reach | 3000 | 36 | 7.5 | 150 | 110/140 |
| N35ZRS3 Single Reach | 3500 | 24/36 | 6.5 | 66/77 | 85 |
| N40ZRS3 Single Reach | 4000 | 24/36 | 6.5 | 66/77 | 85 |
