Key Features & Specs

Designed to Match Your Distribution and Warehouse Needs

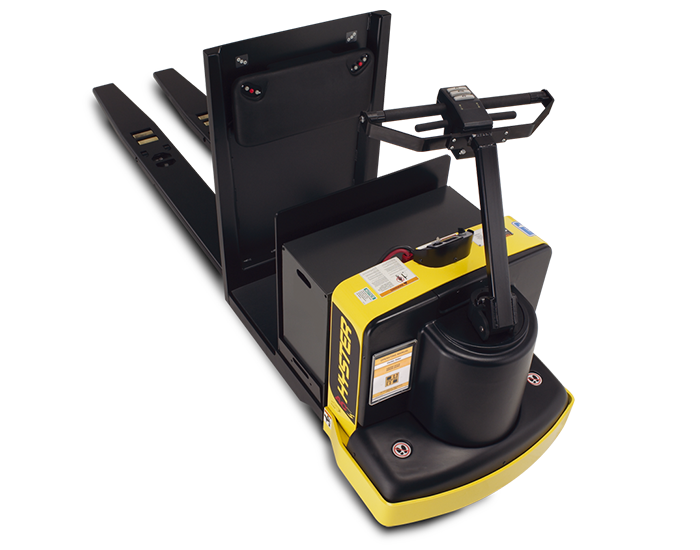

A versatile truck designed for indoor use, this truck is ideally suited for a variety of applications such as general warehousing & storage, bottled & canned soft drinks, distribution centers and cooler and freezer applications.

By utilizing the latest advancements in AC traction control technology our center riders offer enhancements such as superior torque, enhanced speed capabilities, reliability, thermal performance, smoother acceleration. And motor brushes are eliminated which means no arching, no sparking and no maintenance.

  • Environmental packages include cooler / refrigerated, intermittent freezer applications, and spark proof protection.
  • Welded, heavy duty steel constructed frame and forks with steel castings for high stress areas provide superior rigidity and unrivaled durability.
  • The state-of-the-art CANbus electrical system reduces wiring and electrical connections, streamlining communications and improving reliability and serviceability.
  • A selectable range of extended shift performance modes, on-board diagnostic tool capabilities
  • Four user selectable performance modes and a user friendly multi-function display. What advantages are associated with the performance modes and our multi-function display?
  • Customizing the truck to the application, customizing to the skill level of the operator, customizing a password protected performance set-up menu.
  • Hyster® i3 Technology™ integrates commonality among Hyster® warehouse products and simplifies the way in which operators and technicians alike handle and service the truck. The Integrated Intelligent Interface ties together functionality, software, diagnostic codes, similar interfaces and is Hyster® Tracker compatible. This technology allows operator input to optimize performance to suit operator skill level. It also provides setup and diagnostic menus for service technicians.
  • + Expand All
  • - Close All
  • ModelTable
    Model Load Capacity (lbs) Battery Maximum Travel Speed (mph) Maximum Lift Speed (ft/min) Lower Lift Speed (ft/min) Fork Length
    C60ZHD 6000 24 8.1 3.3 1.9 36,48,60
    C80ZHD 8000 24 7.8 3.7 6.4 36,48,84
  • Max Weight: 8000 lbs
  • Type: CENTER RIDER PALLET TRUCKS
  • Max Height: 9.3
  • Weight: lbs
  • Series Title: C60-C80ZHD
  • Capacity: 6,000 - 8,000 lbs
